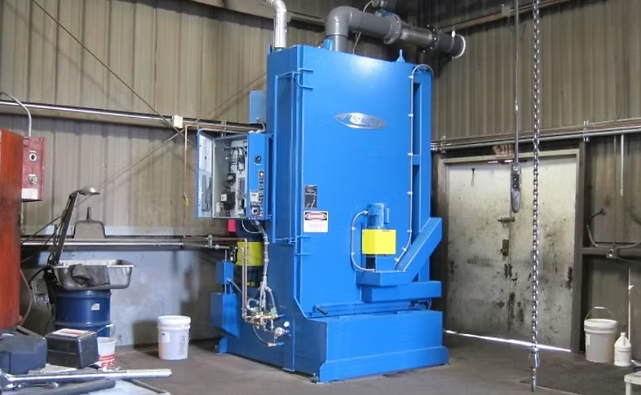

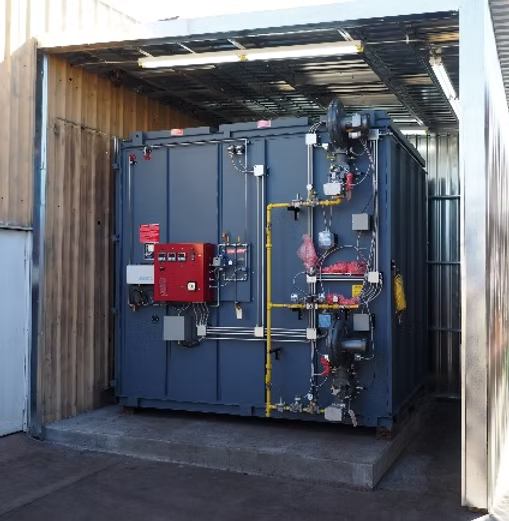

All motors go through a 4 page inspection report including a series of electrical testing, bearing fits, mechanical fits, replace missing or broken parts, and part cleaning. Then its prepared for the clean and bake process
Motor is then baked, and put through a five stage electrical test on a annually calibrated SKF® AWA Motor Analyzer
A core loss test will be done if needed before and after testing.

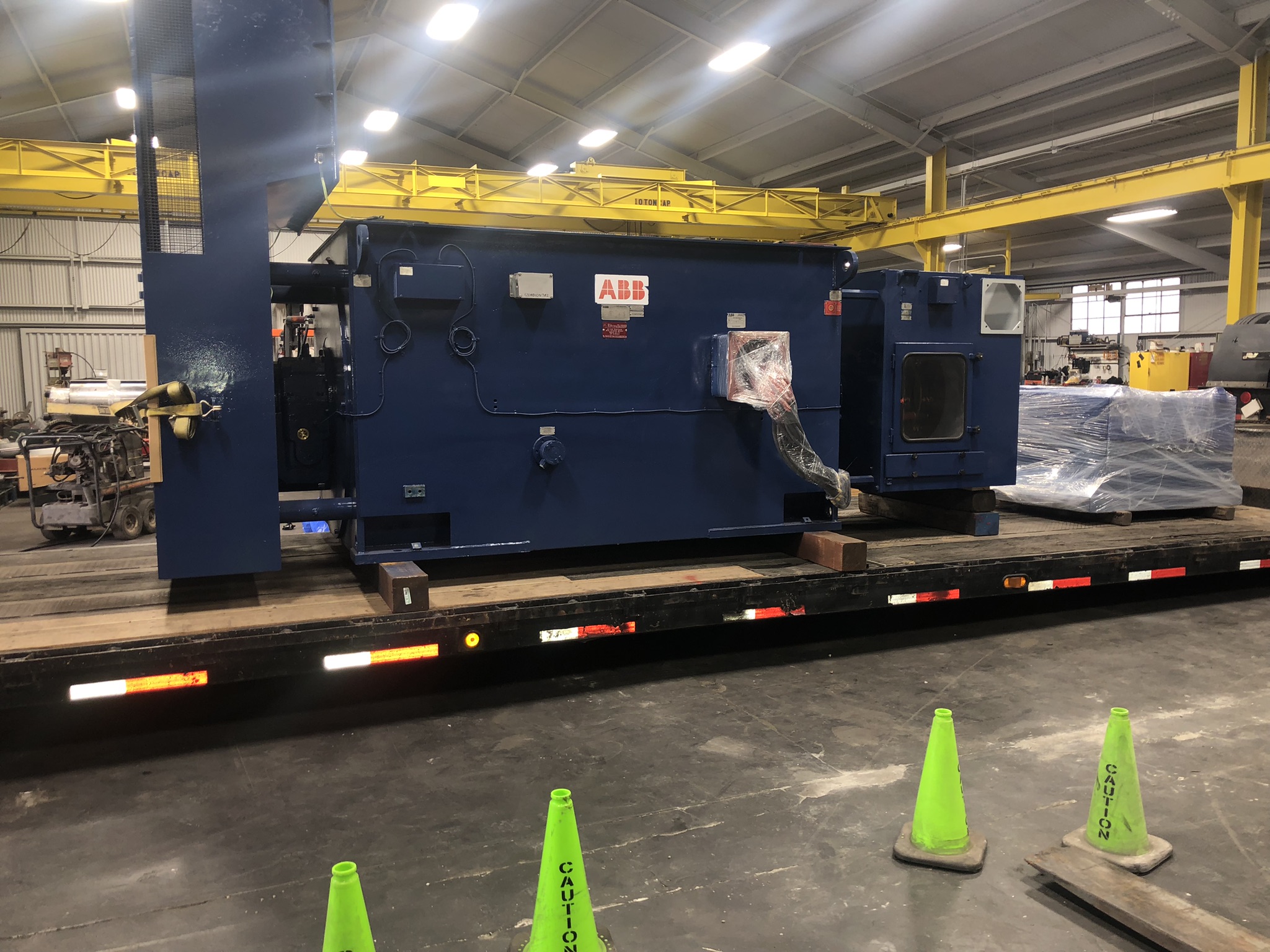

Once the motor passes the AWA testing, it is ready to be assembled and painted, then gets final approval from our shop manager, and is ready to be shipped out
Equipment and Facility Capabilities
0-4160 Volt Computerized Test Center
2 SKF® Baker AWA Computerized Winding Analyzer (Calibrated Annually)
Lexseco® Core Loss Tester (Calibrated Annually)
Steelman Curing Oven With 24 Hr Partlow Chart Recorders
Schenk H40M – 6500 lb. Balancer
Calibrated Measuring devices
Computer Controlled Network
2 Bridgeport 40″ Mill Machine, up to 8″ bore
3 Lathes (24″ swing x 60″ bed, 45″ swing x 80″ bed)
5 Bridge Cranes1-15 ton
2 trucks (7 ton and 4 Ton capacity)
Customized Nameplates
